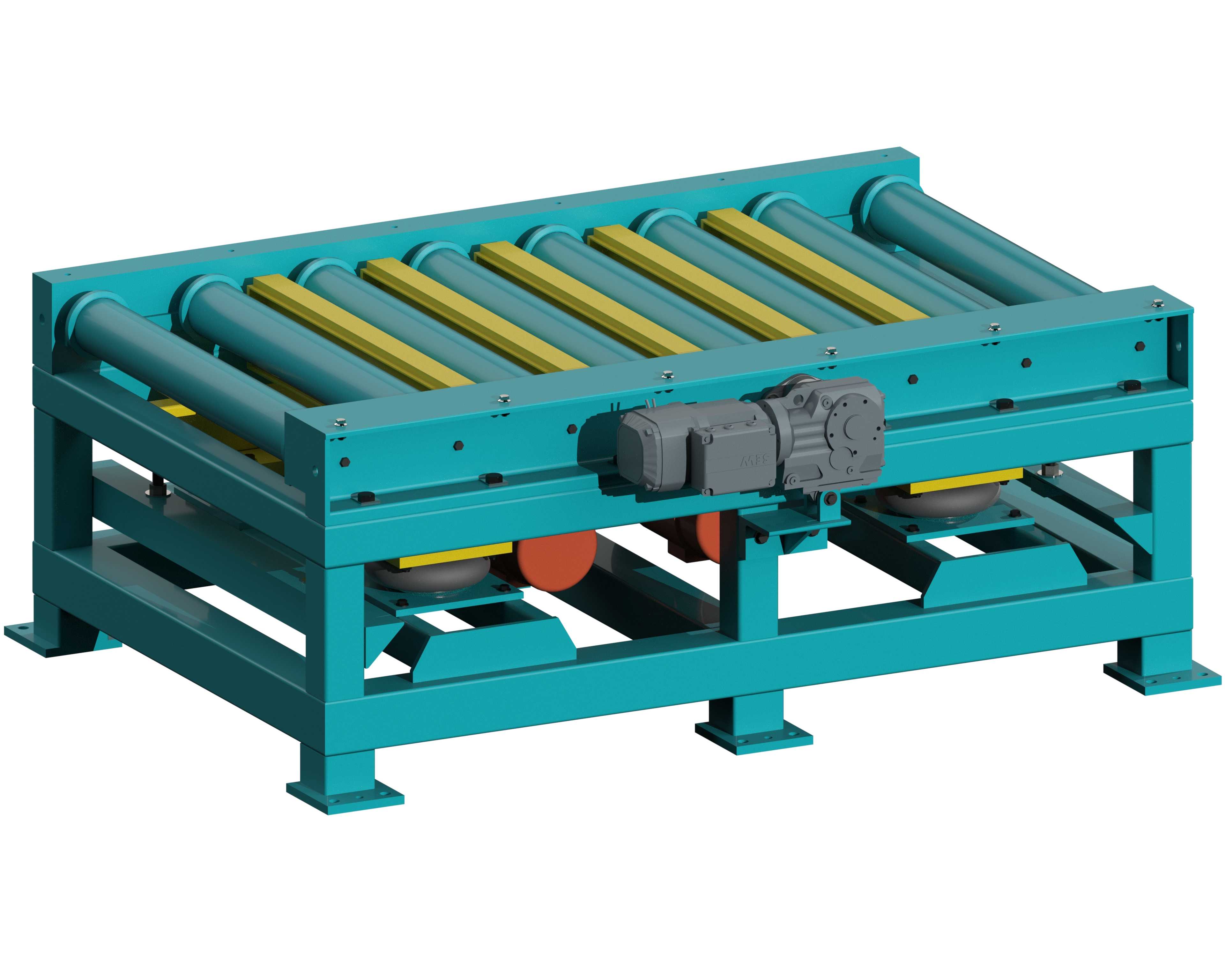

Compaction Table
Compaction tables are designed with VFD control for speed, and vibration on the mould. The compaction table compresses the mould sand in flasks, ensuring it is densely packed and free from air pockets. Properly integrated mould sand improves density and results in better overall product quality.
| Compaction Table | ||
| Model | Bolster Plate (LxW)mm | Bolster Plate (LxW)mm |
| DL CT SIZE 1 | 300 | 1000x800 |
| DL CT SIZE 2 | 500 | 1200x1000 |
| DL CT SIZE 3 | 800 | 1400x1200 |
| DL CT SIZE 4 | 2000 | 1800x1400 |
| DL CT SIZE 5 | 3000 | 2000x1600 |
| DL CT SIZE 6 | 7500 | 3000x3000 |
